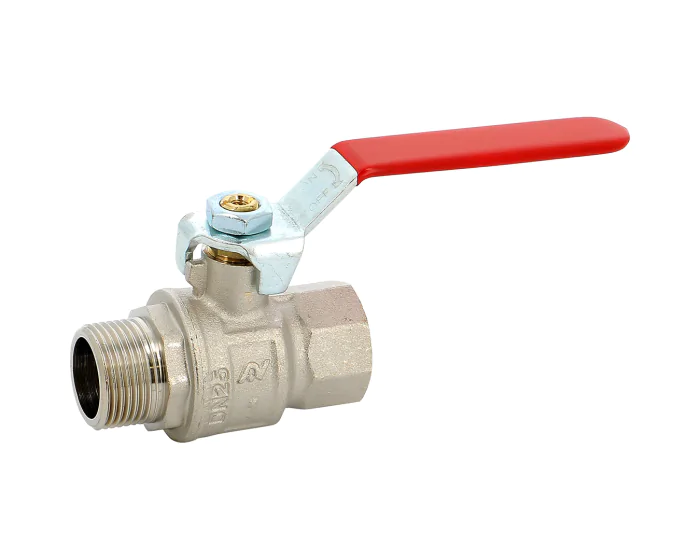

The full bore brass ball valve 527 BSP with wide flat bearing for shut-off of water, heating, sprinkling, irrigation, air conditioning and compressed air systems.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| DN metric | 8/13 |
| Brand | AIRAGA |
| Thread standard | ISO 228-1 |
| Stem sealing material | PTFE Gland packing + EPDM O-ring |
| Type of coating | Nickel-plated |
| Opening device | Handle |
| Application | Industry |
| Shaft/stem matérial | Brass CW614N |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 52.5 |
| Fluid | Cold water |
| Body material | Brass CW617N |
| Number of ways | 2 |
| Bore | Full |
| Bearing | Large flate |
| Packing gland | Yes |
| PS (bar) | 60 |
| Connections | BSP MF |
| Seats | PTFE |
| Ball material | Chrome-plated brass CW617N |
| TS max (°C) | 120 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Handle material | Carbon steel |
| Handle type | Red lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP MF Brass CW617N Full 1/4'' | 527002 | S1010022 |
€5.64
(excl. btw)
|
add to cart |
| BSP MF Brass CW617N Full 3/8'' | 527003 | S1010023 |
€5.64
(excl. btw)
|
add to cart |
| BSP MF Brass CW617N Full 1/2'' | 527004 | S1010024 |
€9.40
(excl. btw)
|
add to cart |
| BSP MF Brass CW617N Full 3/4'' | 527005 | S1010025 |
€13.17
(excl. btw)
|
add to cart |
| BSP MF Brass CW617N Full 1'' | 527006 | S1010026 |
€21.29
(excl. btw)
|
add to cart |
| BSP MF Brass CW617N Full 1''1/4 | 527007 | S1010027 |
€31.74
(excl. btw)
|
add to cart |
| BSP MF Brass CW617N Full 1''1/2 | 527008 | S1010028 |
€45.80
(excl. btw)
|
add to cart |
| BSP MF Brass CW617N Full 2'' | 527009 | S1010029 |
€68.27
(excl. btw)
|
add to cart |
